TianGong Knowledge Base MCP

Check the TianGong MCP Hub for updated knowledge-base tooling guides, scripts, and FAQs. The essentials are summarised below.

Remote Authentication​

API Key​

To obtain an API Key, please contact the Environmental Data Science and Systems Engineering team at Tsinghua University.

MCP Server Invocation​

Inspector​

MCP Inspector Launch: Enter the following command in the terminal, which will automatically redirect to the Inspector page.

npx @modelcontextprotocol/inspector

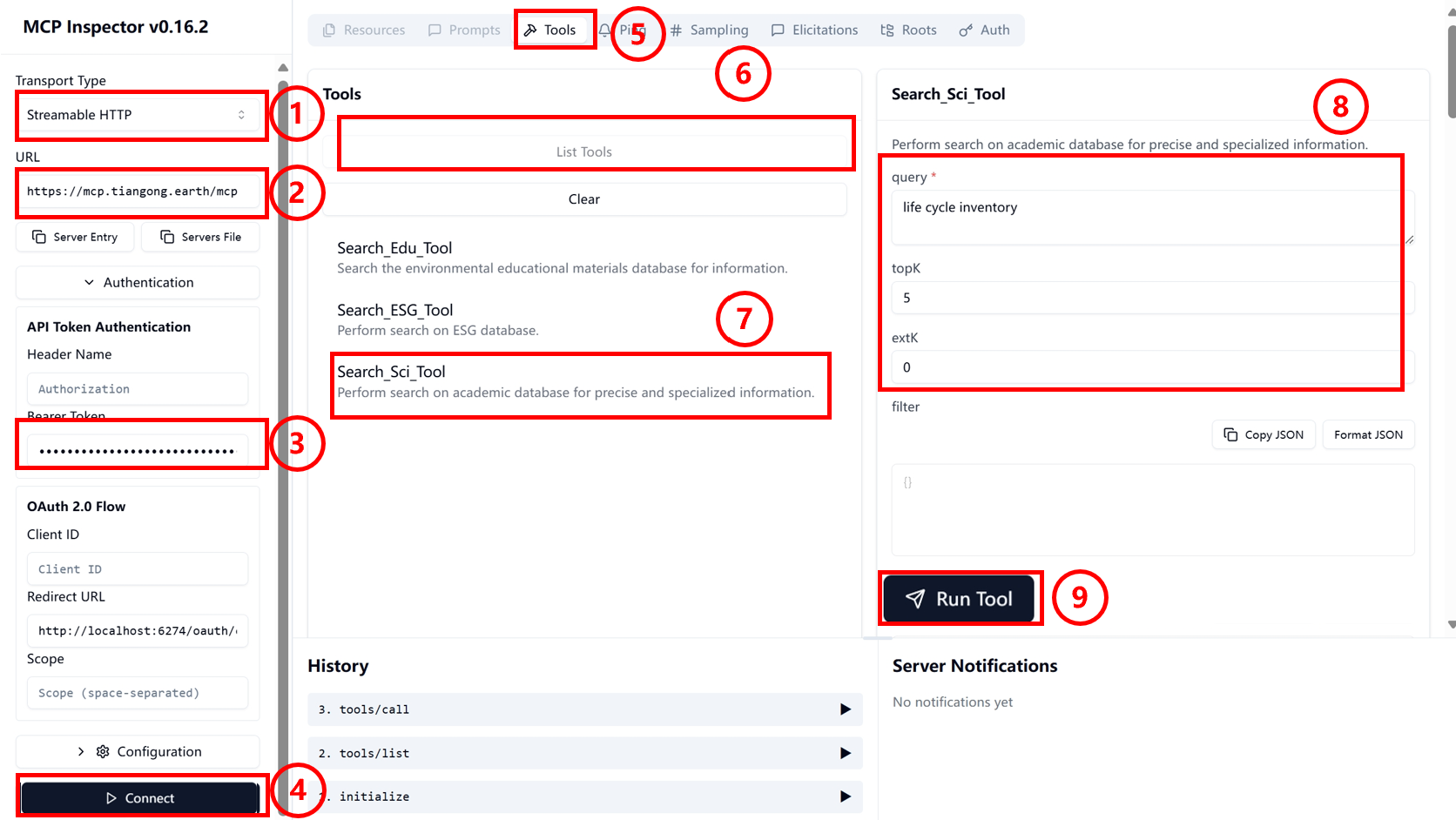

  1. Transport Type Configuration: On the Inspector page, click the dropdown box and select Streamable HTTP.

  2. URL Configuration: Fill in the MCP Server port https://mcp.tiangong.earth/mcp.

  3. Token Configuration: Enter the API Key obtained from the above process into the corresponding token field.

  4. Server Connection: Click connect to establish connection.

    After successful page connection, the following demonstrates the application method using search as an example.

  5. Operation Selection: Click the Tools button on the top toolbar of the page.

  6. List Expansion: Click the List Tools button to display the dropdown list.

  7. Tool Selection: Click the Search_Sci_Tool button in the list.

  8. Search Configuration: Enter search information in the corresponding box and configure the retrieved content accordingly.

  9. Tool Execution: Click Run Tool to execute the tool and display output.

Cherry Studio​

At the Cherry Studio official website, follow the official documentation to download the software to your local machine and open it.

  1. Open Settings Panel: Click the settings button in the sidebar to open the panel.

  2. Open MCP Settings: Select MCP Settings to navigate to the MCP configuration interface.

  3. Add MCP Server: Click the Add Server button in the upper right corner to navigate to the MCP Server configuration interface.

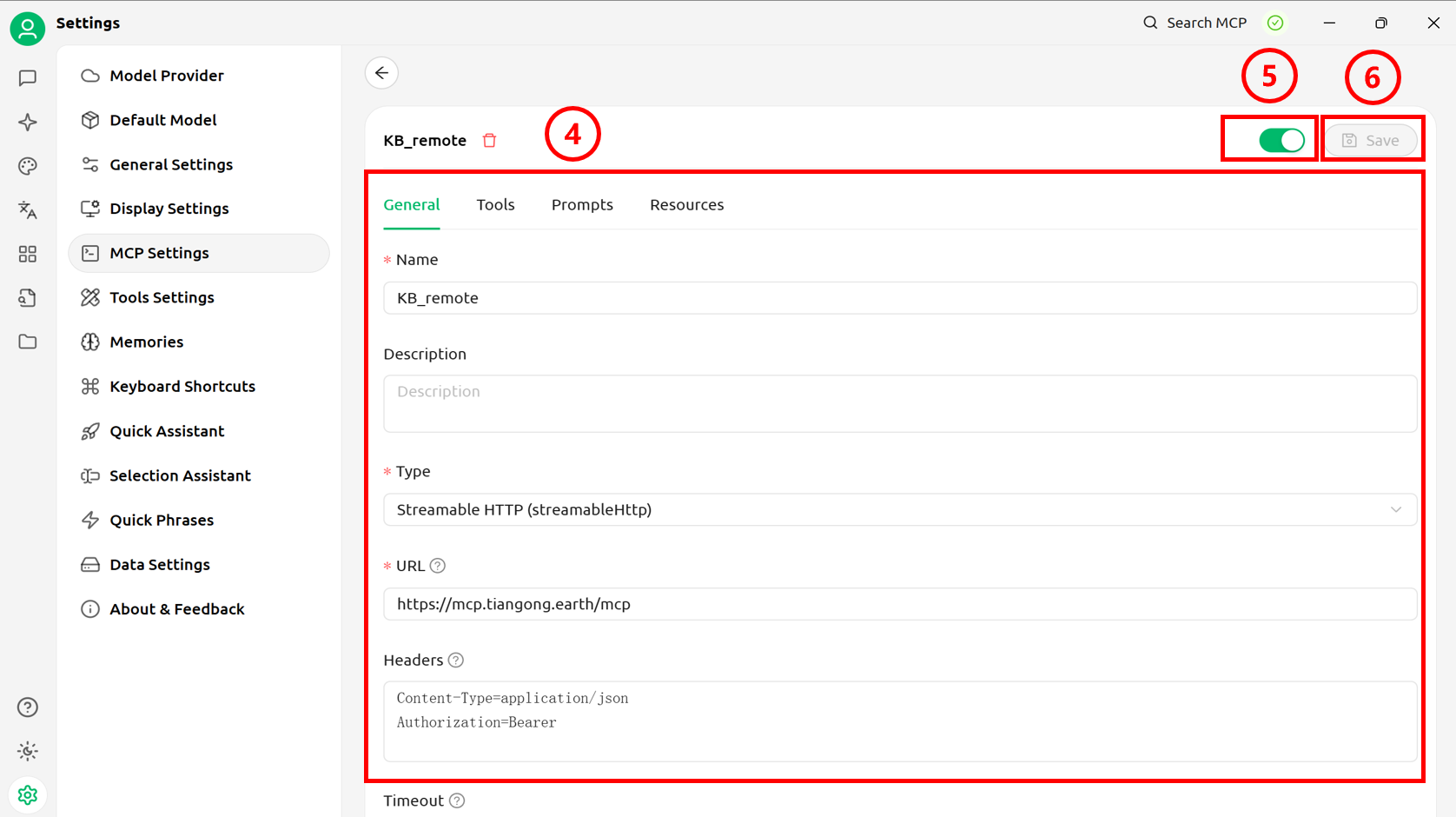

  4. Information Filling: Configure basic information for the local MCP Server (XXX in Headers is the obtained API Key).

    Type: Streamable HTTP
    URL: https://mcp.tiangong.earth/mcp
    Headers:
    Content-Type=application/json
    Authorization=Bearer XXX

  5. Save Information: Click the "Save" button to save settings.

  6. Start MCP Connection: Click to open the MCP Server.

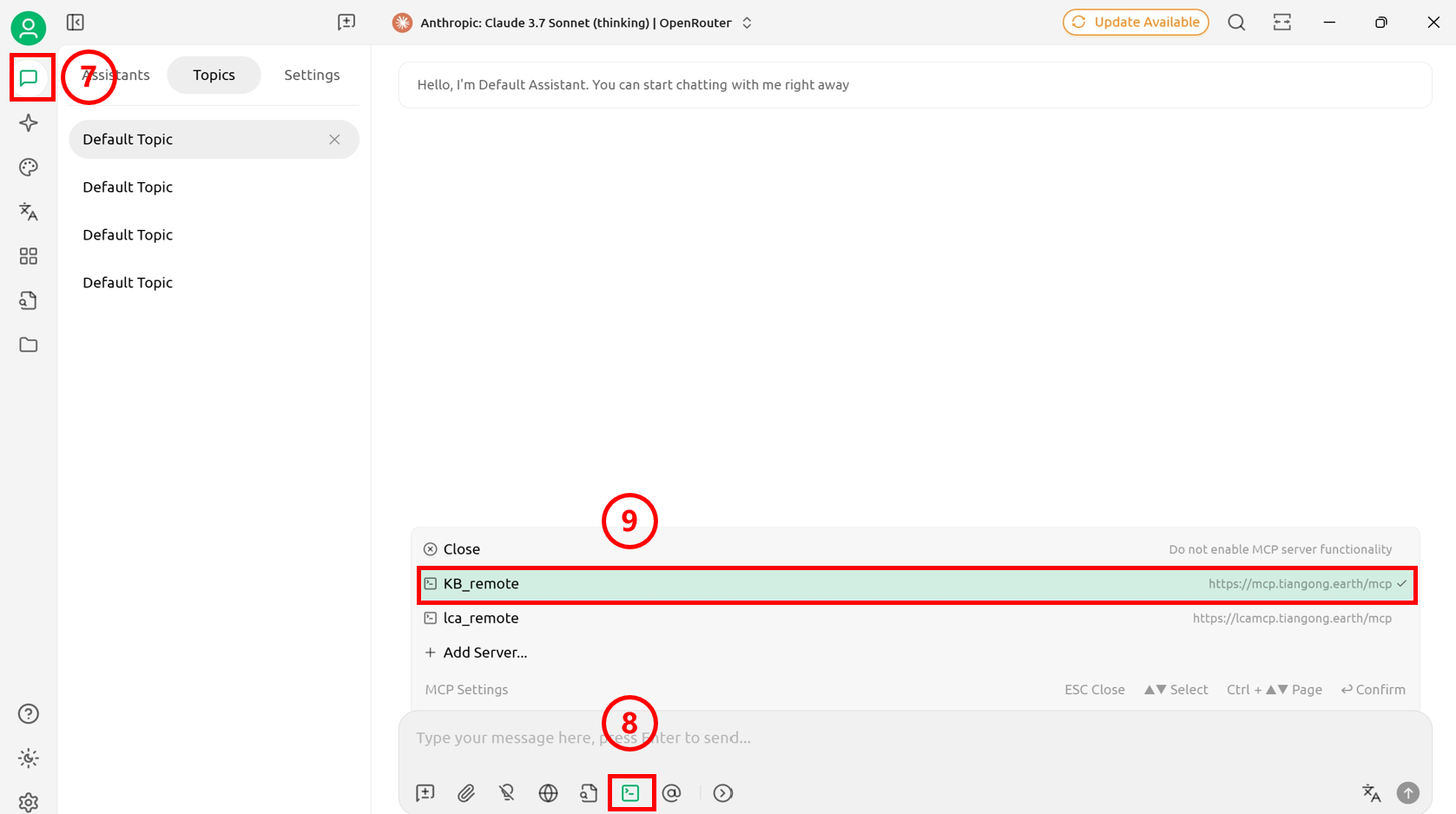

  7. Open Chat Interface: Click the top button in the sidebar to return to the main page. Configure the model (refer to official documentation) and create a chat page.

  8. Server Connection: Click the MCP Settings button below the conversation.

  9. MCP Selection: Select the required MCP.

Dify​

  1. Tools Page Access: Click the "Tools" option in the top toolbar to navigate to the tool management page.

  2. MCP Tool Search: Enter "MCP" keyword in the search bar to search.

  3. Tool Market Download: Find and download the MCP tool in the Market place (the highlighted tool in the figure is the recommended tool).

  4. Tool Installation Execution: Click the "Install" button to complete MCP tool installation.

  5. Configuration Panel Opening: After MCP tool installation is complete, click the pop-up configuration panel.

  6. Authorization Configuration Access: Click "Authorization" to configure MCP authorization.

  7. Configuration Window Opening: Click to open the MCP detailed configuration window.

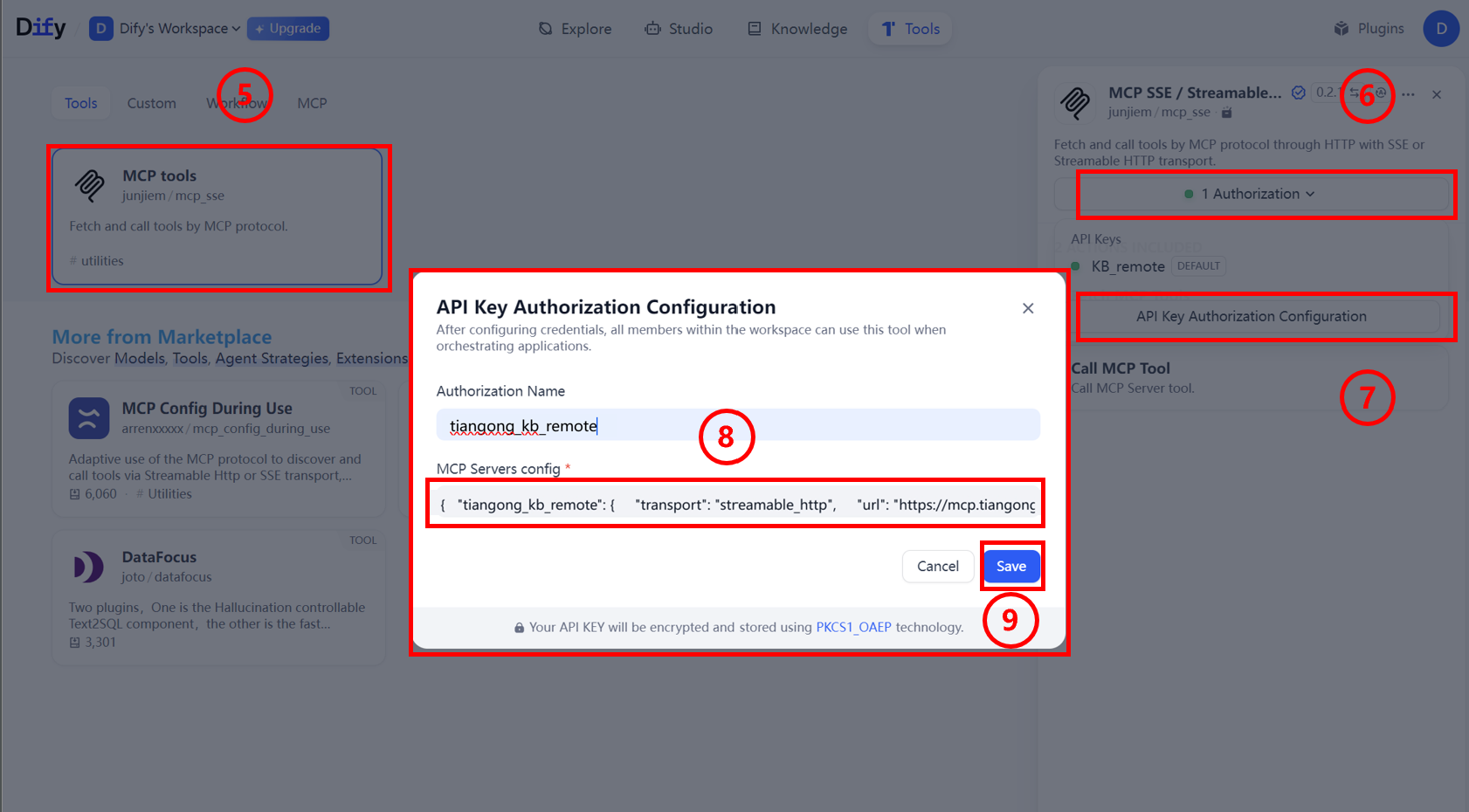

  8. Basic Information Filling: Fill in necessary connection information in the configuration window. (Example below)

    {
    "tiangong_kb_remote": {
    "transport": "streamable_http",
    "url": "https://mcp.tiangong.earth/mcp ",
    "headers": {
    "Accept": "application/json,text/event-stream",
    "Authorization": "Bearer XXX"
    },
    "timeout": 50,
    "sse_read_timeout": 50
    }
    }
  9. Configuration Information Saving: Click the "Save" button after completing the form.

  10. Workflow Construction: Build workflows or agents in Dify to invoke MCP.

    1. For creating agents and workflows, refer to official documentation.
    2. For MCP applications, refer to official documentation
